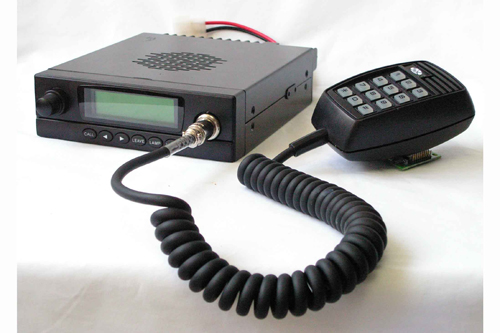

Car-mounted radio of the digital wireless communication

Range of application:

NT868 car-mounted wireless radio is a kind of anti-interference that is offered for the army and special department, radio of the secret communication, have data transmission and digital speech function, used for moving and fought the individual soldier in the forefront and connected with mainly, such departments needing to prevent terror from attacking as the equipment , airborne troop , customs , frontier of communication commanding , special force while arranging ,etc., can be regarded as the terminal of SPD-2000 digital trunking systerm.

Property summary:

NT868 car-mounted radio adopts the latest wireless and baseband technology, it has the secret algorithms that it is unable to decode the figure up to 96 digit, per second 10 jump of anti-interference ability.The GPS module of inside is regard as GPS mobile terminal. The data transmission interface linking with PC directly, can offer the speed of 9.6—19.2Kbps. There are Perfect network scheme and order. High sensitivity , clear speech, compatible simulation converses.

Main technical indicators:

Frequency range:60-88MHz     136-175MHz
                        350-400MHz     400-470MHz
Intervals of channel:12.5KHz   25KHz
Before-seted channels:16channel
Temperature of work circumstance:-30ºC~70ºC
Working voltage: DC 13.8 V

Launch department:

output power:20w
the largest frequent divergence of modulation:  ≤5KHz
the output power in the neighbor: ≤-70dB
Stray power output:≤-70dB
Surplus modulating:≤-40dB

Receive department:

Digital sensitivity: ≤-119dBm:
Simulation communication:≤-120dBm
An alternative in the neighbor:  ≥70dB
Mutual modulation of anti-interference: ≥70dB
Harmonic suppression  of anti-interence:  ≥70dB
Distort: ≤5%
Simulative flexibility:≥50dB

Data transmittal function:

Transmittal speed: 9.6 Kbps     19.2Kbps
(BER 9.6 Kbps      ≤-117dBm
≤10-6 ：)  19.2Kbps     ≤-111dBm
